Page 9 - Mat Bağlantı | Pop Perçin Somun ve Diğerleri

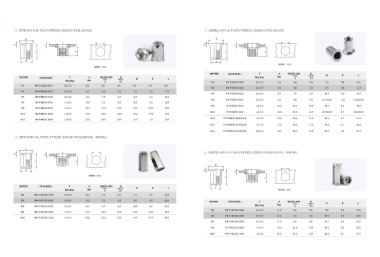

SIFIR KAFA ALTIGEN PERÇİN SOMUN PASLANMAZ GENİŞ KAFA ALTIGEN PERÇİN SOMUN PASLANMAZ

㶰䖈
# # )PMF TJ[F #
, , ,
5 5 5
- - " " - "

% %
%
BİRİM：mm
BİRİM：mm
METRİK ÜRÜN KODU T A DELİK ÇAPI D
+0.1 +0.07 B K L
METRİK ÜRÜN KODU T A DELİK ÇAPI D Min Max Rer 0 -0.1
+0.1 +0.07 B K L
Min Max Rer
-0.1
0
M3 FH-FHB/SS-0315 0.5-1.5 5.5 5.0 4.9 7.5 0.8 8.5
M3 RH-FHB/SS-0315 0.5-1.5 5.0 5.0 4.9 6.0 0.5 8.5
M4 FH-FHB/SS-0420 0.5-2.0 6.5 6.0 5.9 9.0 0.8 11.0
M4 RH-FHB/SS-0425 0.5-2.5 6.7 6.0 5.9 7.0 0.5 11.0
M5 FH-FHB/SS-0525 0.5-2.5 8.0 7.0 6.9 10.0 1.0 14.0
M5 RH-FHB/SS-0530 0.5-3.0 9.0 7.0 6.9 8.0 0.5 14.5
M6 FH-FHB/SS-0630 0.5-3.0 8.5 9.0 8.9 12.7(13.0) 1.35 15.0(16.0)
M6 RH-FHB/SS-0635 1.0-3.5 10.0 9.0 8.9 10.0 0.6 16.0
M8 FH-FHB/SS-0835 1.0-3.5 10.5 11.0 10.9 16.0 1.5 18.0
M8 RH-FHB/SS-0840 1.0-4.0 11.5 11.0 10.9 12.0 0.65 18.0
M10 FH-FHB/SS-1035 1.0-3.5 12.5 13.0 12.9 18.0(19.0) 1.7 21.0(23.0)
M10 RH-FHB/SS-1035 1.0-3.5 12.5 12.0 11.9 13.5 0.75 19.0
M10 FH-FHB/SS-1035(12H) 1.0-3.5 13.5 12.0 11.9 18.0 1.7 21.0
M12 RH-FHB/SS-1240 1.0-4.0 15.5 16.0 15.9 17.5 1.0 25.0
13
M12 FH-FHB/SS-1240(15H) 1.0-4.0 14.0 15.0 14.9 20.0 1.7 23.0
M12 FH-FHB/SS-1250(16H) 2.0-5.0 16.5 16.0 15.9 23.0 2.0 27.0
SIFIR KAFA ALTIGEN PERÇİN SOMUN PASLANMAZ - KAPALI

#
GENİŞ KAFA ALTIGEN PERÇİN SOMUN PASLANMAZ - KAPALI
, 5

- "
#
% ,
5
BİRİM：mm
- "

METRİK ÜRÜN KODU T A DELİK ÇAPI D
+0.1 +0.07 B K L %
Min Max Rer 0 -0.1 BİRİM：mm
M4 RH-FHBC/SS-0425 0.5-2.5 12.3 6.0 5.9 7.0 0.5 16.0
M5 RH-FHBC/SS-0530 0.5-3.0 15.2 7.0 6.9 8.0 0.5 20.0
METRİK ÜRÜN KODU T A DELİK ÇAPI D
+0.1 +0.07 B K L
Min Max Rer
M6 RH-FHBC/SS-0635 0.5-3.5 14.5 9.0 8.9 10.0 0.6 20.5 0 -0.1
M4 FH-FHBC/SS-0420 0.5-2.0 11.0 6.0 5.9 9.0 1.0 15.0
M8 RH-FHBC/SS-0840 1.0-4.0 17.0 11.0 10.9 12.0 0.65 23.0
M5 FH-FHBC/SS-0525 0.5-2.5 13.5 7.0 6.9 10.0 1.0 18.0
M10 RH-FHBC/SS-1045 1.0-4.5 20.0 13.0 12.9 14.5 0.75 28.5
M6 FH-FHBC/SS-0630 0.5-3.0 17.0 9.0 8.9 12.7 1.3 23.0
M8 FH-FHBC/SS-0B35 1.0-3.5 19.0 11.0 10.9 16.0 1.5 26.0

M10 FH-FHBC/SS-1040 1.0-4.0 25.0 13.0 12.9 18.0 1.7 33.0
